WiiM Ultra offers a comprehensive suite of audio inputs & outputs & is built with audiophile-grade components.

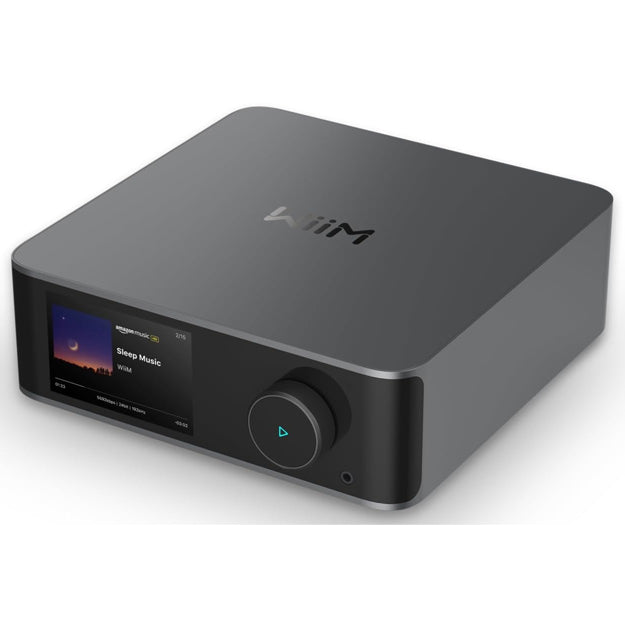

Sleek Design, Superior Build
Experience exceptional audio with our sleek aluminum-encased device, featuring a 3.5" glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.
Stream Everything You Love
Streamline your sonic exploration with the WiiM Home app. Say goodbye to app-hopping; this all-in-one interface connects you to a plethora of popular music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz, Napster, Pandora, TuneIn, Deezer, and more.
Superior Sound Quality
Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.

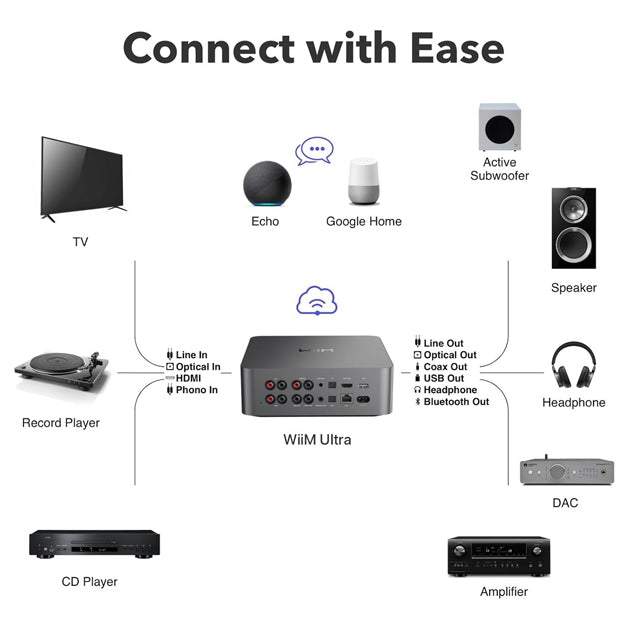

Connect with Ease
WiiM Ultra's comprehensive connectivity suite offers USB, Optical, Coaxial, RCA outputs, and HDMI ARC, plus multiple inputs including RCA, Phono, and Optical. It's designed to flawlessly integrate with both digital and analog systems, enhancing any audio setup with versatility and superior sound.

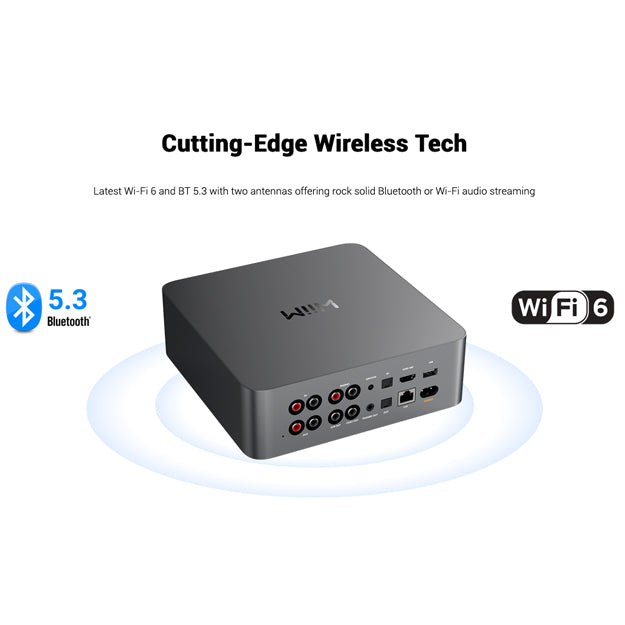

Cutting-Edge Wireless Tech
Latest Wi-Fi 6 and BT 5.3 with two antennas offering rock solid Bluetooth or Wi-Fi audio streaming.
Your Music Looks Great
Features a 3.5" vibrant touch screen, displaying large album art, VU meter, instant feedback, music playback, and other customizable displays. This makes navigating through inputs, outputs, and settings a smoother and more user-friendly experience, also provides immediate visual feedback to the user's actions.

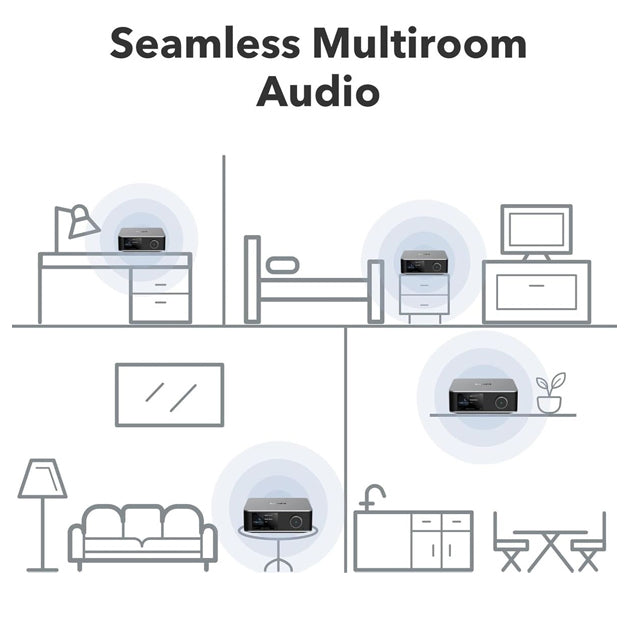

Seamless Multiroom Audio
Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App-control volume, synchronize speakers, save your favorite tunes, set alarms, and customize settings, all from one central hub.
Customized Hi-Res Audio
Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space.
Enhance Your Home Theater Experience
Quickly enhance your entertainment with the WiiM Ultra's HDMI ARC and Subwoofer Out. Experience rich stereo sound for movies, shows, and games. Customize your sound experience with tailored EQ settings. Add a powered subwoofer for deep, cinematic bass. The WiiM Ultra ensures your home audio setup is both powerful and straightforward, bringing superb sound quality with minimal effort.

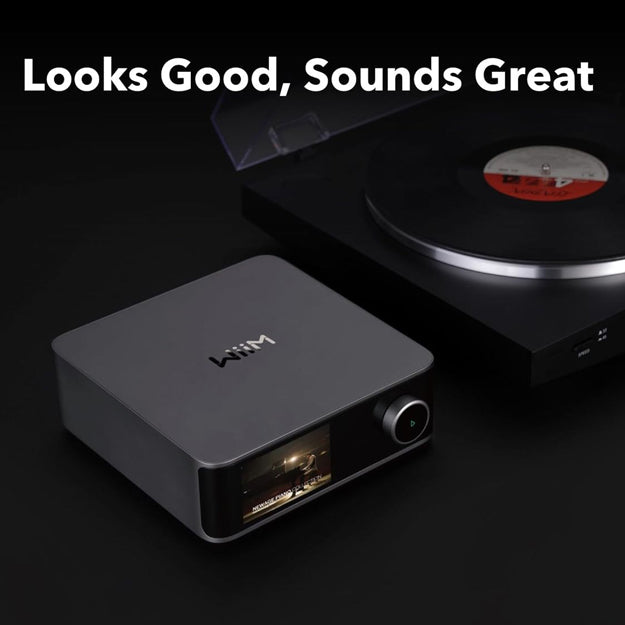

Looks Good, Sounds Great
The WiiM Ultra redefines your audio experience with its sleek aluminum design and premium components. This all-in-one music streamer boasts a ESS ES9038 Q2M DAC, a vibrant 3.5" touchscreen, state-of-the-art Wi-Fi 6, and Bluetooth 5.3 connectivity. Engineered for excellence, it delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121dB, making it a perfect addition to any sound system.

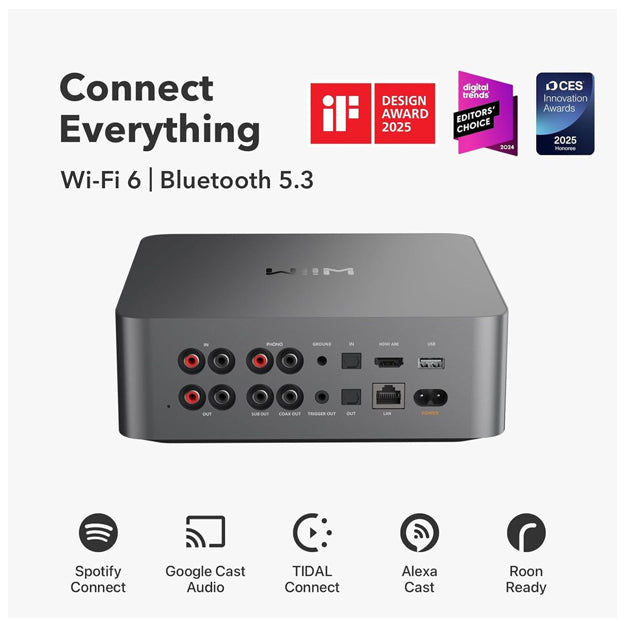

Versatile Connectivity Options
The WiiM Ultra offers versatile audio integration with its wide array of connection options. It features USB, Optical, Coaxial, RCA, a dedicated headphone output; HDMI ARC, and inputs for RCA, Phono, and Optical. It seamlessly integrates with both digital and analog sources, offering unparalleled flexibility for any audio setup.

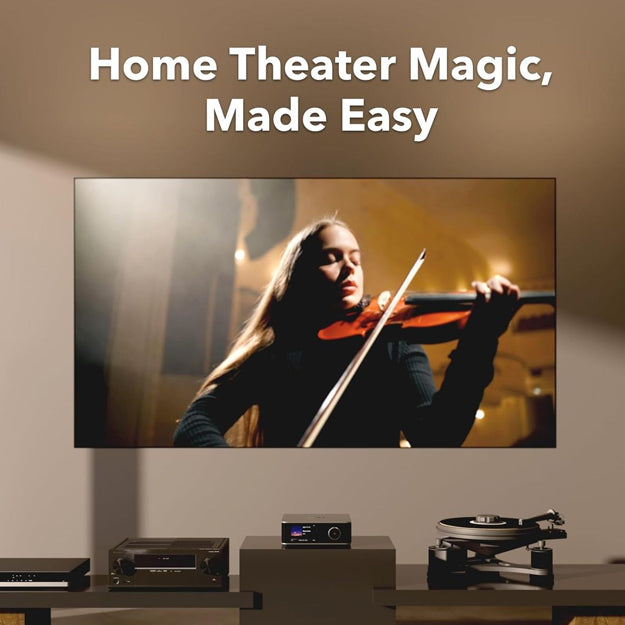

Home Theater Magic, Made Easy
Quickly enhance your entertainment with the WiiM Ultra's HDMI ARC and Subwoofer Out. Experience rich stereo sound for movies, shows, and games. Customize your sound experience with tailored EQ settings. Add a powered subwoofer for deep, cinematic bass. The WiiM Ultra ensures your home audio setup is both powerful and straightforward, bringing superb sound quality with minimal effort.
Seamless Multiroom Audio
Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App-control volume, synchronize speakers, save your favorite tunes, set alarms, and customize settings, all from one central hub.
Hi-Res Sound Shaped by You
Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space.
Please Note
This device is incompatible with AirPlay and cannot function as an AirPlay receiver.
Technical Specifications
Connectivity Technology
Bluetooth, Wi-Fi, Ethernet
-
Controller Type
Google Assistant, Amazon Alexa, App Control
-
Special Feature
Spotify Connect, Works with Alexa, Google Voice and Google Cast Audio, TIDAL Connect, Roon Ready, NAS, DLNA, Home Media Server
-
Compatible Devices
Speaker, DAC, Amplifier, Mobile phone, Tablet, Echo, Google Home
-
Total HDMI Ports
1
-
Connector Type
USB, Subwoofer Output, RCA, SPDIF (TOSLINK), COAX, Phono, Headphone Jack, Ethernet, AC Power
-
Audio Output Mode
RCA, Headphone, Coax, Optical, USB, BT, or DLNA receiver
Surround Sound Channel Configuration
2.1
-
Touch Display
Glass-covered 3.5" vibrant touchscreen display:
Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings
Guides users through the OOBE and OTA
Provides feedback when there's a change in the play mode
-

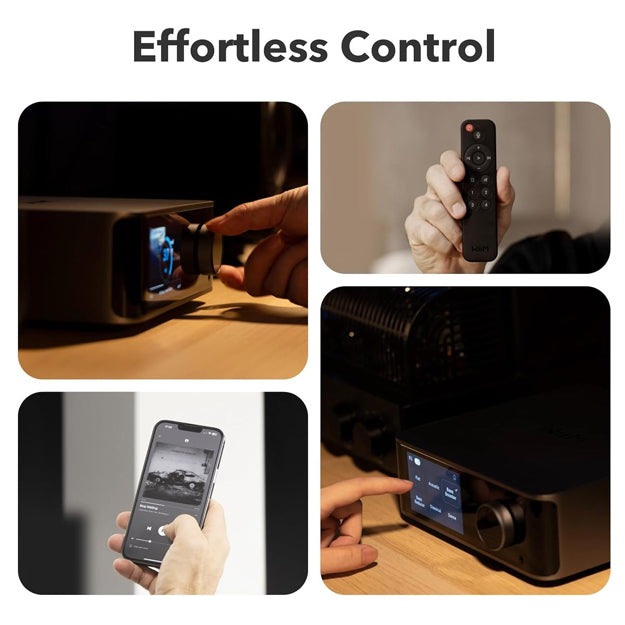

Control Interfaces
LCD Touchscreen: 3.5-inch display for playback control and settings
Volume Knob: Adjusts volume and functions as a play/pause button
LED Indicator: 4-color RGBW LED indicates device status
-
LED
4 Color RGBW LED indicates the device status
-
Input Options
Analog Inputs
Line-In (RCA): Connects to external audio sources like CD players or PCs
Phono Input: Dedicated input for turntables without a built-in preamp
Digital Inputs
Optical (TOSLINK): Supports 2-channel PCM stereo up to 24-bit/192kHz
HDMI ARC: Receives audio from TVs; supports PCM and Dolby Digital 5.1 formats
-
Wireless Connectivity
Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote
Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming
USB Port: For connecting USB storage devices (formatted in FAT32, NTFS, or EXT4)
-
Output Options
Analog Inputs
Line-Out (RCA):Maximum output of 2.1V RMS
Headphone Out: 3.5mm jack for connecting headphones
Digital Outputs
Optical (TOSLINK): Supports up to 24-bit/192kHz
Coaxial (S/PDIF): Supports up to 24-bit/192kHz
USB Audio Out: Supports up to 24-bit/192kHz; UAC 2.0 compliant
Subwoofer Output: Dedicated output for powered subwoofers
12V Trigger Out: Allows automatic power control of connected devices
-
Audio Performance
Line out
DAC: ESS ES9038Q2M SABRE DAC
Analog Output SNR: 121 dB (A-weighted)
THD+N (Analog Out): -115 dB (0.00018%)
Supported Audio Formats: AAC, ALAC, FLAC, MP3, WAV, WMA, and more
Maximum Sampling Rate: Up to 192kHz/24-bit
Headphone out
300 ohms: SNR (119 dB), THD+N (-99 dB)
32 ohms: SNR (119 dB), THD+N (-92 dB)
-
EQ
24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ
-
External Storage
Access personal media library and use it as a media server for other WiiM and DLNA devices,
Support FAT32, NTFS, and EXT4 file systems.
-
Supported Streaming Protocol
Spotify Connect, TIDAL Connect, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite, Roon Ready
What's In The Box
1 x WiiM Ultra Music Streamer & Digital Preamp (3.5" Touchscreen) - Space Grey
1 x User Guide
1 x Power Cable
1 x RCA Cable
1 x HDMI Cable
1 x Optical Cable
1 x Remote Control
1 x Phono Ground Adapter
