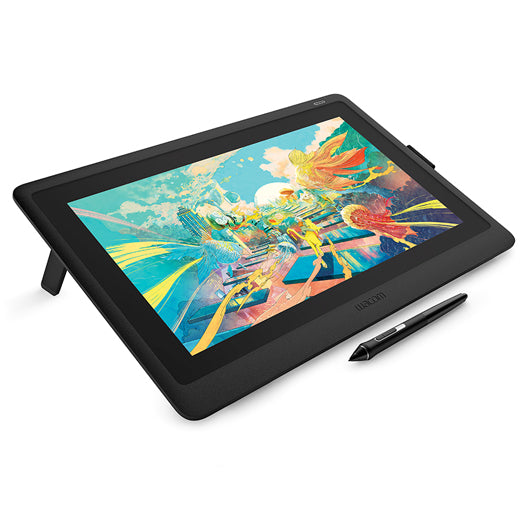

Make it on Wacom Cintiq. Wacom Cintiq is a creative pen display that helps you bring your ideas to life on screen. Vibrant color, HD clarity and ergonomic design combine with the super-responsive Pro Pen 2 to take your work to the next level.
Wacom Cintiq in a nutshell: Increase your productivity with the powerful screen and pen combination. 8,192 levels of pressure sensitivity give you amazing precision. The pen reacts to the tilt of your hand and accurately responds to each movement, immediately. The 1920 x 1080 full HD display is built for creativity, with anti-glare, reduced parallax, foldable legs and more to make your work flow easier. Plus, it’s durable and scratch resistant.
Features overview: Wacom Pro Pen 2 offers precision and control – with 8,192 levels of pressure sensitivity, low activation force and tilt recognition.
Never need to charge the pen – EMR (Electro Magnetic Resonance) technology draws power from your Wacom Cintiq.
Comfortable in your hand – weight-balanced, rubber grip and easy reach of the side buttons.
Get easy access to your favorite software’s shortcuts – with the pen’s programmable side buttons.
Avoid distracting reflections as you work – thanks to a layer of anti-glare film.
See your cursor appear exactly where you would expect with reduced parallax.
Rely on Wacom Cintiq day after day – thanks to durable, scratch resistant materials.
Reduce fatigue in your arms and shoulders – with enough room to rest your hands while you draw.
Get into the perfect position – a pair of foldable legs let you adjust how you want to work. An optional stand gives you even more control
See every detail of your work – the 1920 x 1080 full HD display gives you all the clarity you need.
Work in vibrant, but realistic color – with 72% of NTSC color gamut.
Model Number DTK1660K0B Display Size / Resolution 39.6 cm (15.6 in) / Full HD 1920 x 1080 Active Area 344 x 194 mm (13.6 x 7.6 in) Size 422 x 285 x 24.5 mm (16.6 x 11.2 x 1 in) Weight 1.9 kg without optional stand Displayable Colors (maximum) 16.7 million Color Gamut 72% NTSC (CIE1931) typical Viewing Angle 176/176 (typ) / 140/140 (min) Contrast Ratio 1000:1 (typ) / 600:1 (min) Response 25 ms Power Consumption Power ON mode (MAX): 27 W Power sleep mode: 0.5 W or less (non-connection USB cable) Power OFF mode: 0.5 W or lower Aspect Ratio / Brightness 16:9 / 210 cd/m² (typ) (including glass), white luminance (center) 180 cd/m² (min) Color Temperature/Custom Color 9300K, 6500K, 5000K, Custom RGB Connectivity 3-in-1 cable (with HDMI 1.4, USB 2.0 and AC adapter) Pen Battery-free Pro Pen 2 with 2 customizable side switches and 8,192 pressure levels in both pen tip and eraser (patented electromagnetic resonance technology) Pen Tilt Recognition / Range ±60 levels / 60 degrees
ExpressKey™ Remote (optional) 17 customisable, application-specific ExpressKeys, Touch Ring, Rocker Ring/Home Button, Precision Mode, Display Toggle, Radial Menu, and dedicated pan, scroll, zoom, brush size Stand Integrated foldable legs for 19° angle Security Kensington® Lock Slot (lock purchased separately) Productivity Boosters Time-saving on screen settings; ExpressKeys™, Touch Ring on optional ExpressKey™ Remote Ergonomics Right or left-handed use; integrated foldable legs; optional stand available; Wacom Pro Pen 2 with comfortable, ergonomic grip
Compatibility / System Requirements Windows® 7 or later (latest service pack/build), Mac OS® X 10.12 or later (latest update); Internet access for driver download
What's Included Wacom Cintiq 16 pen display Wacom Pro Pen 2, detachable pen holder with 3 replacement nibs (standard) and nib removal tool 3-in-1 cable (1.8 m) AC adapter (12 V, 3 A, 36 W) Power cable (1.8 m) Quick Start Guide Regulation sheet
