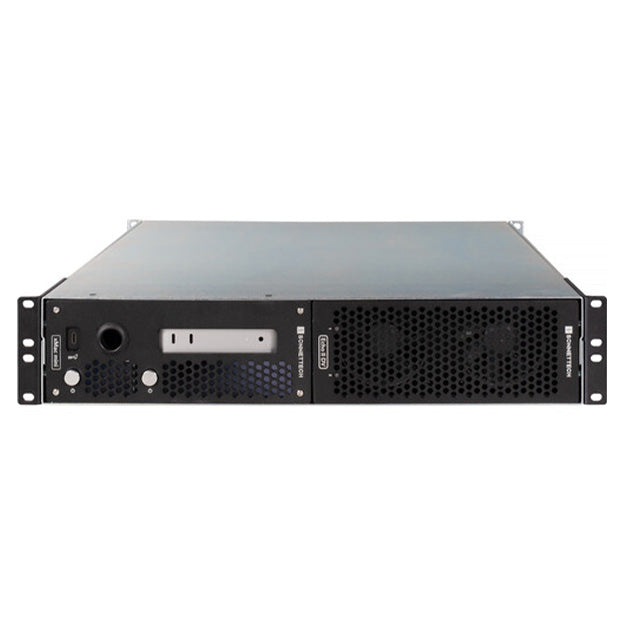

Boost your workflow with this preconfigured Pro Modular 2U Rackmount Enclosure, which includes Sonnet xMac mini (2024+) and Echo II DV Thunderbolt 5 Expansion Modules to install up to two Mac mini computers and two non-GPU PCIe 4.0 x16 expansions.
The xMac mini (2024+) modules power your Mac mini systems with front-facing power buttons. Cut-out slots provide easy access to the front mounted ports, while a cable passthrough allows you to connect devices to the rear ports. A dedicated USB-C passthrough port links to a rear-mounted Mac mini. Rear ports may be accessed through the back of the module. The space underneath the computers has room for up to two separately purchased external SSDs.
The Echo II DV T5 module supports up to two separately available full-length, full-height DV I/O expansion cards. Additionally, it features two Thunderbolt 5 connectors that provide up to 80 Gb/s data transfers with M4 Pro Mac mini systems and other compatible devices. Each of the Expansion cards may be linked to a single Mac mini or independently connected to two computers via the Thunderbolt 5 ports, operating at 6000 MB/s bandwidth. The system also works with Thunderbolt 4 equipped Mac minis at up to 2880 MB/s speeds. A 400W power supply is preinstalled alongside two Noctua fans that provide efficient cooling. Extension rails for 16" to 24" deep racks, two Thunderbolt 5 cables, and two ThunderLok-A connector locks are also included.
xMac mini (2024+) Module
Module for adding up to two Mac minis
Front power buttons
Front panel USB-C port to rear-mounted Mac mini
Front panel cable passthrough
Power hub provides single power connection for up to two Mac minis
Storage space for up to two external SSD drives
Echo II DV T5 Module
Connect to one M4 Pro Mac mini using two Thunderbolt 5 cables, each connected to a separate Thunderbolt port, or
Connect to two M4 Pro Mac minis using one Thunderbolt 5 cable to each card
Connect two bandwidth-hungry DV I/O cards
Installed in enclosure expansion bay
Dual 80 Gb/s Thunderbolt 5 interfaces
Two PCIe 4.0 slots
6000 MB/s PCIe bandwidth to each slot with M4 Pro Mac minis; 2800 MB/s with M4 Mac minis
Supports two full-height, full-length, single-width PCIe cards
400W power supply with two 75W aux. power connectors
Dual Noctua fans (17 dbA)
Key Specs
Expansion Slots
2x PCIe 4.0 x16
System Connection
Thunderbolt 5
Inputs/Outputs
2x USB-C (Thunderbolt 5)
PCIe Power Connector
No
General
Expansion Slots
2x PCIe 4.0 x16
Supported PCI Card Sizes
Full-Height, Full-Length
System Connection
Thunderbolt 5
Inputs/Outputs
2x USB-C (Thunderbolt 5)
Data Transfer Rates
Thunderbolt 5: 80 Gb/s
Power
Power Source Type
400 W Internal PSU
PCIe Power Connector
No
Physical
Form Factor
Rackmount (2 U)
Construction Material
Metal
Colour
Black
Audible Alarm
Yes
Dimensions
19 x 16.5 x 5.2" / 48.3 x 41.9 x 13.2 cm
Weight
28.99 lb / 13.15 kg
Packaging Info
Package Weight
28.35 lb
Box Dimensions (LxWxH)
23 x 22.2 x 8.9"
