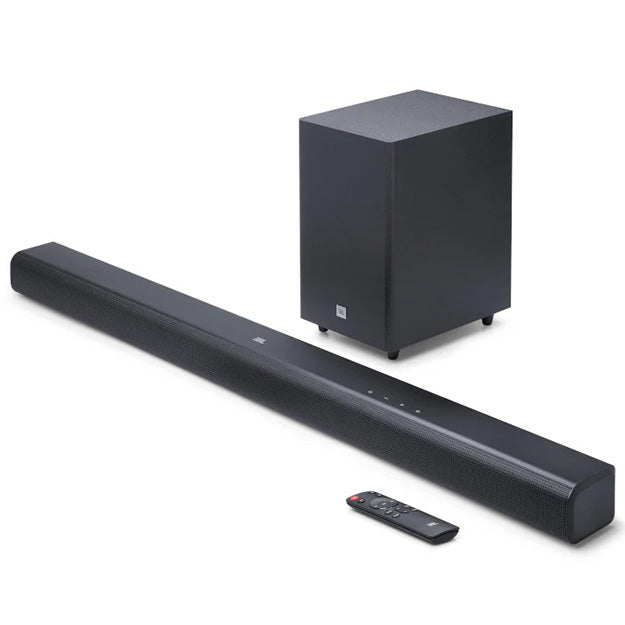

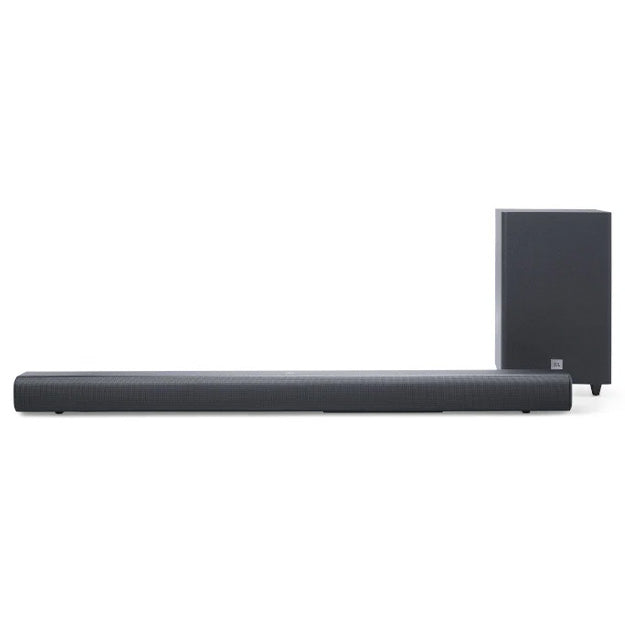

Step up your sound with the 3.1 channel JBL Cinema SB560 soundbar. 250 watts of powerful Dolby Audio in a compact design, plus extra deep, extra loud bass from a wireless 5.25” subwoofer will make everything you watch more exciting.
A dedicated center channel means TV and film dialogue always sounds crystal clear. Setup is simple, with a choice of either a one-cable HDMI ARC or optical connections. And when the TV is off, seamless Bluetooth connectivity means you can use it to play your favorite streaming music and podcasts from any device.
Features
Dedicated center channel
provides superior voice clarity
250W power output
Wireless subwoofer for extra
deep bass
One cable connection with HDMI
ARC
Wireless music streaming via
Bluetooth
Dolby Audio embedded
Features and Benefits
Dedicated center channel provides superior voice clarity A dedicated center channel delivers film and TV dialogue with amazing clarity. You’ll never ask “What did they just say?” again.
250W power output
Incredible, powerful sound for an immersive cinematic experience.
Wireless subwoofer for extra deep bass
Enjoy deep and thrilling bass and clutter-free experience.
One cable connection with HDMI ARC
The one cable HDMI ARC connection allows for the simplest setup and a hassle-free user experience.
Wireless music streaming via Bluetooth
Stream and enjoy all your music wirelessly from any mobile device.
Dolby Audio embedded
Delivers powerful sound that enhances any movie experience.
Technical Specifications
General Specifications
Model: CINEMA SB560
Sound system: 3.1 channel
Power supply: 100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%): 250W
Soundbar output power (Max @THD 1%): 150W
Subwoofer output power (Max. @THD 1%): 100W

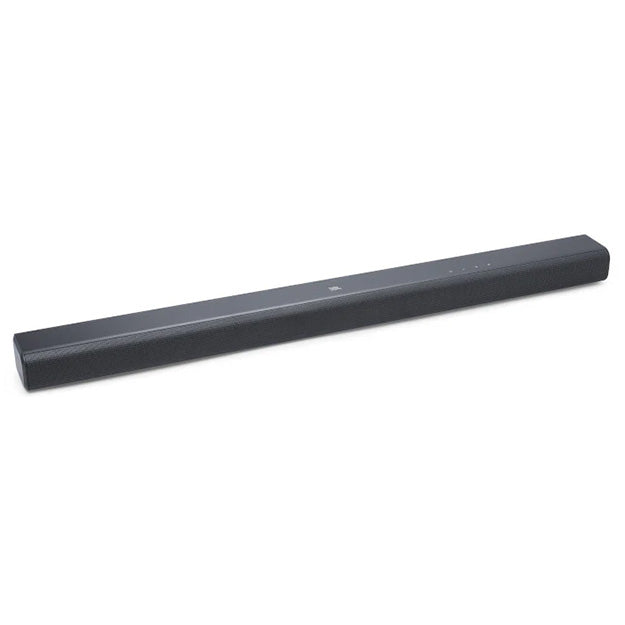

Soundbar transducer: 3x (45 x 100) mm
racetrack drivers + 2x 13mm tweeters

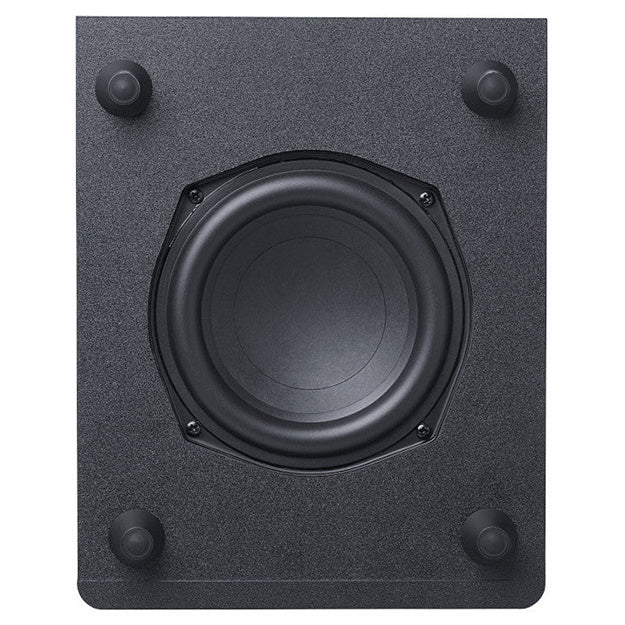

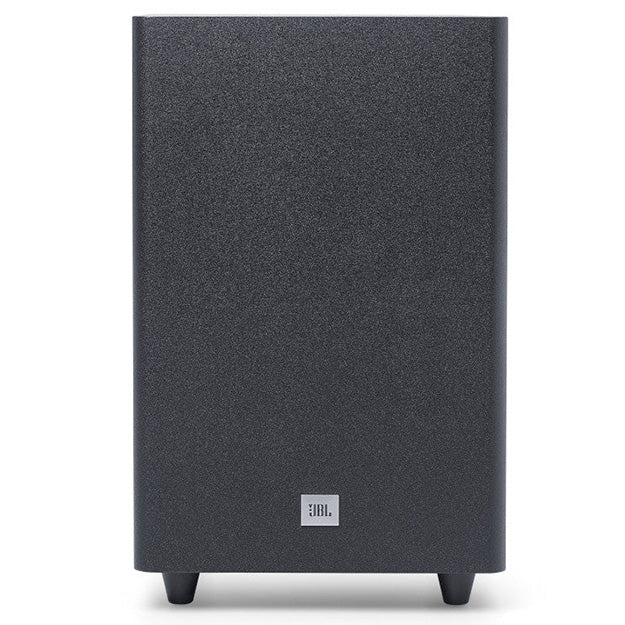

Subwoofer transducer: 5.25” (133mm), wireless
subwoofer
Standby power: < 0.5 W
Operating temperature: 0°C - 45 °C
HDMI Specification
HDMI ARC (Audio Return Channel): 1
HDMI HDCP version: 1.4
Audio Specification
Frequency response: 45Hz-20kHz (-10dB)
Audio inputs: 1 Optical, Bluetooth and USB
(USB playback is available in US version. For other
versions, USB is for Service only.)
USB Specification
USB port: Type A
USB rating: 5V DC, 0.5A
Supporting file formats: mp3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3,
MPEG 2.5 Layer 3
MP3 sampling rate: 16 - 48 kHz
MP3 bitrate: MPEG 1 Layer 1: 32 kbps - 448 kbps;
MPEG 1 Layer 2: 32 kbps - 384 kbps; MPEG 1 Layer
3: 32 kbps - 320 kbps; MPEG 2/2.5 Layer 1: 32 kbps
-256 kbps; MPEG 2/2.5 Layer 2/3: 8 kbps - 160 kbps
Wireless Specification
Bluetooth version: 5.3
Bluetooth profile: A2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range: 2400 MHz
– 2483.5 MHz
Bluetooth Max. transmitting power: <10 dBm (EIRP)
Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK
2.4G wireless transmitter frequency range: 2402-
2481 MHz
2.4G wireless transmitter power: <10dBm (EIRP)
2.4G wireless modulation: GFSK
Dimensions

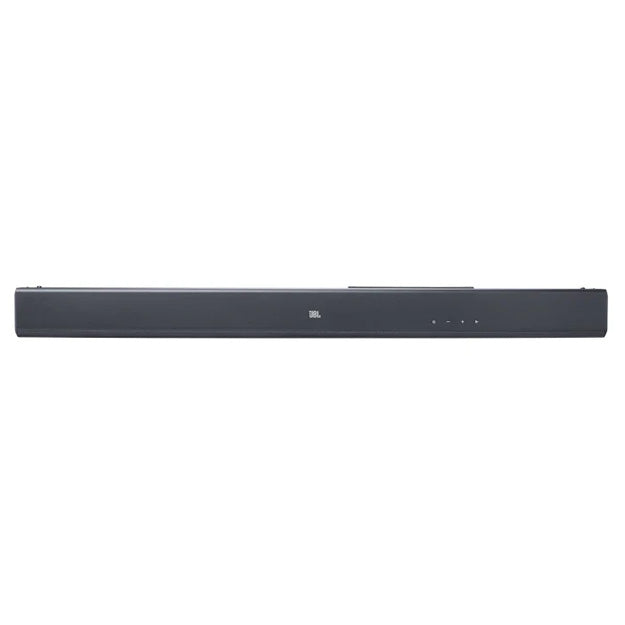

Soundbar dimensions (W x H x D): 950 x 64 x
80 mm / 37.4’’ x 2.5’’ x 3.1’’

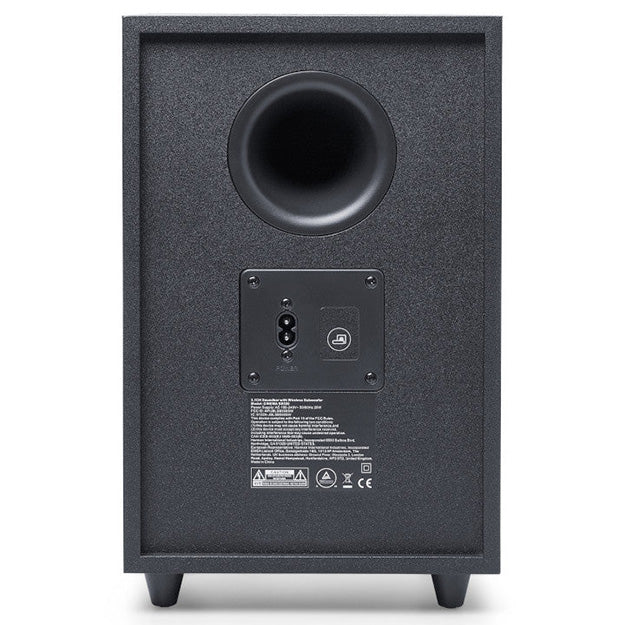

Subwoofer dimensions (W x H x D): 200 x 324 x
250 mm / 7.9” x 12.8” x 9.9”
Soundbar weight: 2.5kg / 5.5 lbs
Subwoofer weight: 4.2 kg / 9.3 lbs
Packaging dimensions (W x H x D): 1025 x 235 x 397mm / 40.4” x 9.3” x 15.6”
Packaging Weight: 8.8kg / 19.4 lbs

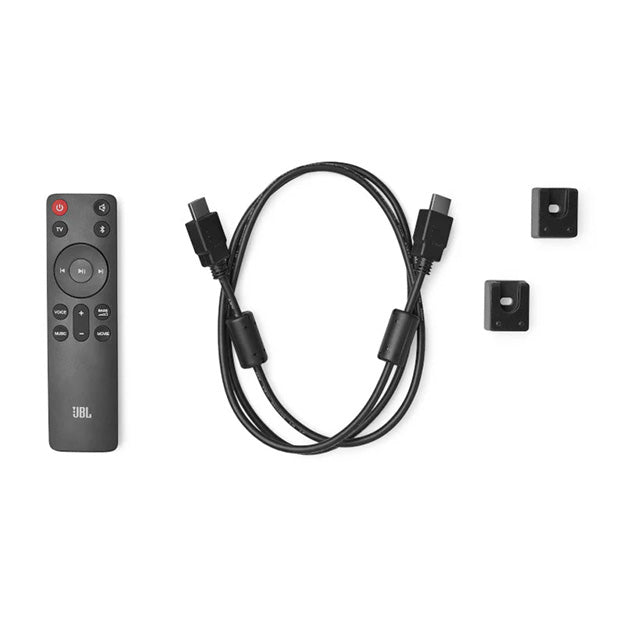

What’s In The Box
Soundbar
Wireless subwoofer
Remote control with batteries
Power cords (up to 8pcs depending on region SKUs)
HDMI cable
Wall-mount bracket kit with screws
Quick start guide
Warranty card
Safety sheet
