The JBL MA710 is an AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience.
Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 1 output, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA710 features seven channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Audio sources can be played to a second Zone, making audio available in a secondary location. In addition to physical controls, the MA710 allows for IP control for third party control system integration.
7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
Stream music wirelessly via Bluetooth andnetwork streaming (Apple Airplay 2, Google Chromecast)
Seven channels of low noise Class D amplification for real world power to all channels
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 1 output, plus eARC
Moving magnet phono input for connecting a turntable
EZ Set EQ provides easy-to-use room equalization for optimized sound quality
Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations
On-screen display for easy system setup and operation (via HDMI)
• 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience • Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 1 output, plus eARC • Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations • Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast) • Moving magnet phono input for connecting a turntable • On-screen display for easy system setup and operation (via HDMI) • Seven channels of low noise Class D amplification for real world power to all channels • EZ Set EQ provides easy-to-use room equalization for optimized sound quality
Specifications
Amplifier Section Channels 7.2 Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 110 W RMS Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) 160 W RMS
Video Features HDMI eARC Yes HDMI Audio Return Channel Yes 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) 3 HDMI 2.1 enhanced gaming features Gaming-VRR, ALLM, QFT, HFR (4K@120Hz) HDR 10+, Dolby Vision Yes, Yes
Audio Features File format MP3 / MPEG-4 AAC: up to 48 kHz / 320kbps WMA: up to 48 kHz / 192kbps ALAC: up to 192 kHz / 24-bit FLAC: up to 192 kHz / 24-bit PCM / WAV / AIFF: up to192 kHz / 24-bit Pure Direct Yes EZ/Set EQ Yes Front channel bi-amp Yes DA converter 192kHz/24-bit
General Mains voltage 110 – 240V, 50–60Hz Max. power consumption 500W Standby power consumption <0.5W Dimensions incl. feet and speaker terminals (H x W x D) 4.3” x 17.0” x 13.7” (109.9mm x 432.0mm x 347.6mm) Weight 13.8lb (6.3kg)

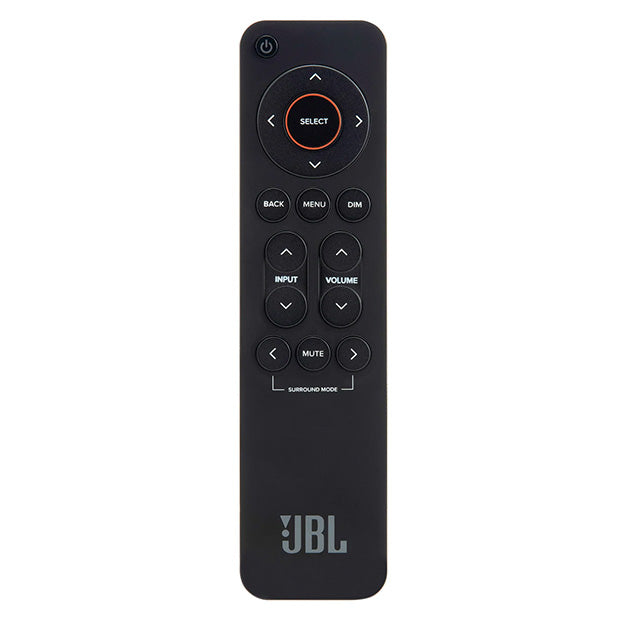

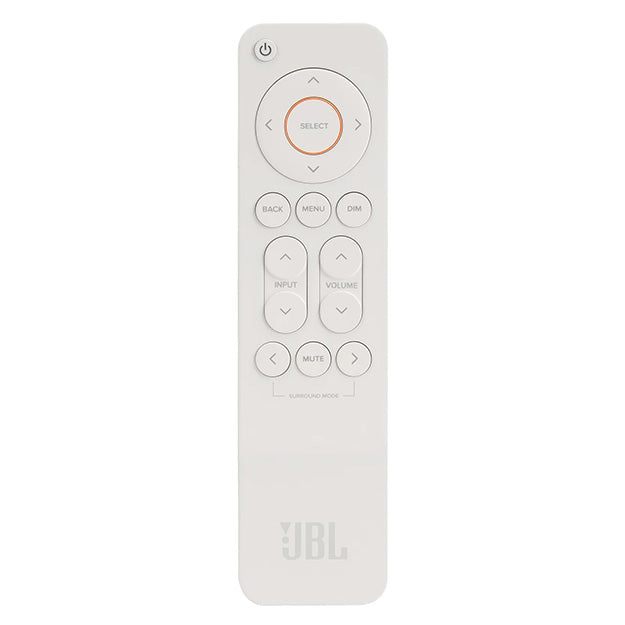

What's In The Box 1 x MA710 AV Receiver 1 x IR remote 2 x AAA batteries 1 x Bluetooth antenna 2 x Wi-Fi antenna 1 x power cord
